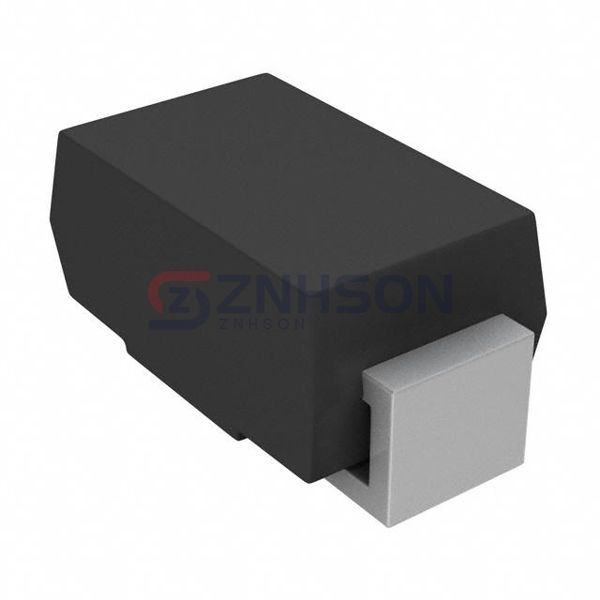

SMAZ5943B-E3/5A
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 56V 500MW DO214AC
$0.12
Available to order
Reference Price (USD)
7,500+
$0.12407
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMAZ5943B-E3/5A from Vishay General Semiconductor - Diodes Division is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the SMAZ5943B-E3/5A is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 56 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 86 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 42.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 200 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
