SMBJ22CAH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC DO214AA
$0.28
Available to order
Reference Price (USD)
1+
$0.27660
500+
$0.273834
1000+
$0.271068
1500+
$0.268302
2000+
$0.265536
2500+
$0.26277
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuit protection with the SMBJ22CAH TVS diode from Taiwan Semiconductor Corporation. This diode excels in clamping transient voltages and ensuring system integrity. TVS diodes are crucial in applications ranging from consumer electronics to military hardware. They provide robust defense against voltage surges, such as those caused by lightning or switching loads. For example, the SMBJ22CAH can protect military communication systems from transient interference. Taiwan Semiconductor Corporation offers top-grade TVS diodes engineered for superior performance and reliability.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 17.7A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
Related Products
Eaton - Electronics Division
SMCJE60CAH
Vishay General Semiconductor - Diodes Division
SMF7V5A-E3-18
STMicroelectronics
SMA6F64A
Vishay General Semiconductor - Diodes Division
SMAJ12CA-E3/61
STMicroelectronics
SMAJ13A-TR
Vishay General Semiconductor - Diodes Division
P6KE20CAHE3/54
Vishay General Semiconductor - Diodes Division

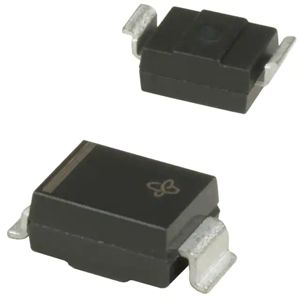

SMBG14A-M3/5B
