SMBJ5356AE3/TR13
Microchip Technology
Microchip Technology
DIODE ZENER 19V 5W SMBJ
$0.78
Available to order
Reference Price (USD)
3,000+
$0.60200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMBJ5356AE3/TR13 by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the SMBJ5356AE3/TR13 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 19 V
- Tolerance: ±10%
- Power - Max: 5 W
- Impedance (Max) (Zzt): 3 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 13.7 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 1 A
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMBJ (DO-214AA)
Related Products
Microchip Technology

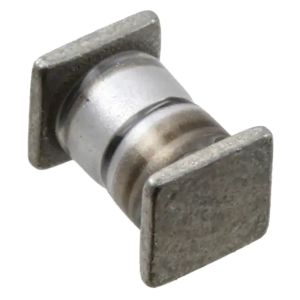

JANTXV1N6340US/TR
Nexperia USA Inc.

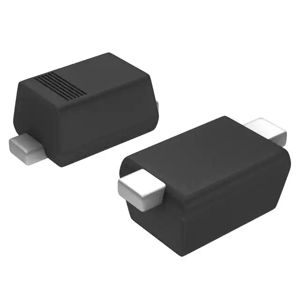

BZX585-C12,115
Vishay General Semiconductor - Diodes Division
1N4733A-TAP
Nexperia USA Inc.
BZX84-C6V8,215
Comchip Technology

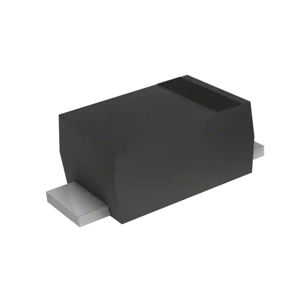

ABZT52C7V5-HF
Microchip Technology

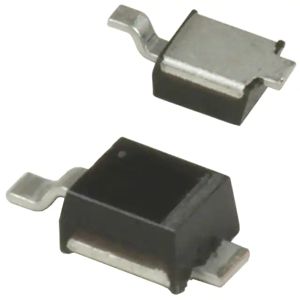

1PMT5948E3/TR7
Micro Commercial Co
MMSZ5230B-TP
Vishay General Semiconductor - Diodes Division
ZPY39-TR
Microchip Technology

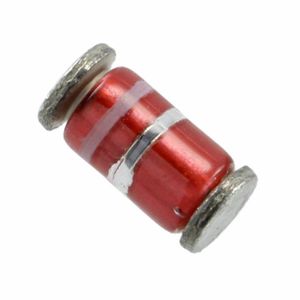

CDLL5918C
