SMBJ78AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 78VWM 126VC DO214AA
$0.18
Available to order
Reference Price (USD)
1+
$0.18438
500+
$0.1825362
1000+
$0.1806924
1500+
$0.1788486
2000+
$0.1770048
2500+
$0.175161
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMBJ78AH TVS diode by Taiwan Semiconductor Corporation delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the SMBJ78AH can protect GPS modules in vehicles from ESD events. Taiwan Semiconductor Corporation provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 78V
- Voltage - Breakdown (Min): 86.7V
- Voltage - Clamping (Max) @ Ipp: 126V
- Current - Peak Pulse (10/1000µs): 5A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
Related Products
Vishay General Semiconductor - Diodes Division
TPSMP24AHM3_A/I
Toshiba Semiconductor and Storage
DF5A6.2FU(TE85L,F)
Panjit International Inc.
P4KE18CA_R2_00001
Comchip Technology

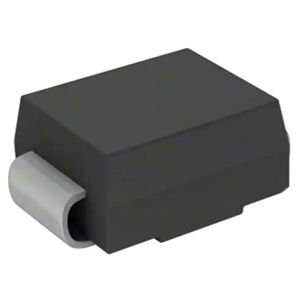

TVP06B601A-G
YAGEO
5KP24CA/B
Comchip Technology

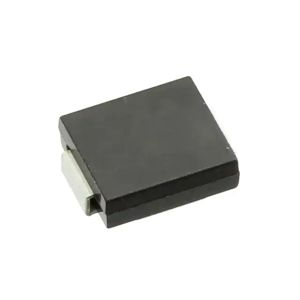

TV30C6V0JB-G
Eaton - Electronics Division
SMBJE440A
Microchip Technology
MASMBJ18CA
Panjit International Inc.

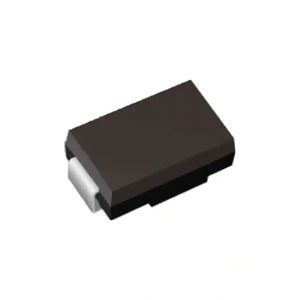

P4SMAJ9.0A_R1_00001
