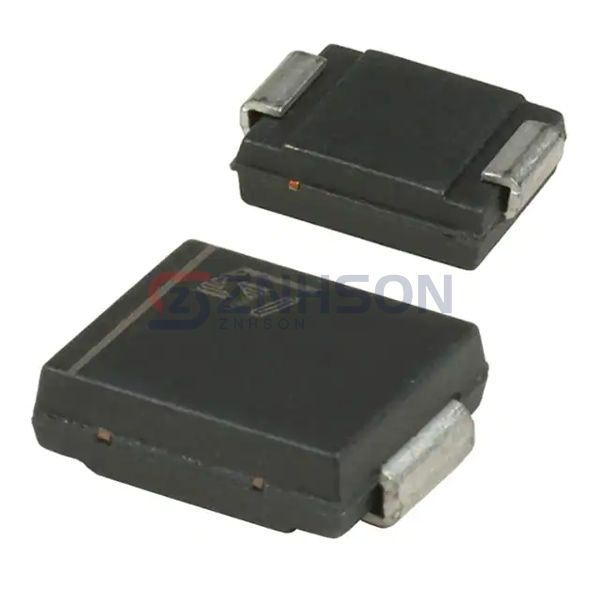

SMCJ70A-TR
STMicroelectronics
STMicroelectronics
TVS DIODE 70VWM 146VC SMC
$0.00
Available to order
Reference Price (USD)
2,500+
$0.44100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SMCJ70A-TR TVS diode by STMicroelectronics. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SMCJ70A-TR are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SMCJ70A-TR can shield HDMI ports in consumer electronics from voltage surges. Trust STMicroelectronics's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Obsolete
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 70V
- Voltage - Breakdown (Min): 77.8V
- Voltage - Clamping (Max) @ Ipp: 146V
- Current - Peak Pulse (10/1000µs): 69A (8/20µs)
- Power - Peak Pulse: 1500W (1.5kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: SMC
