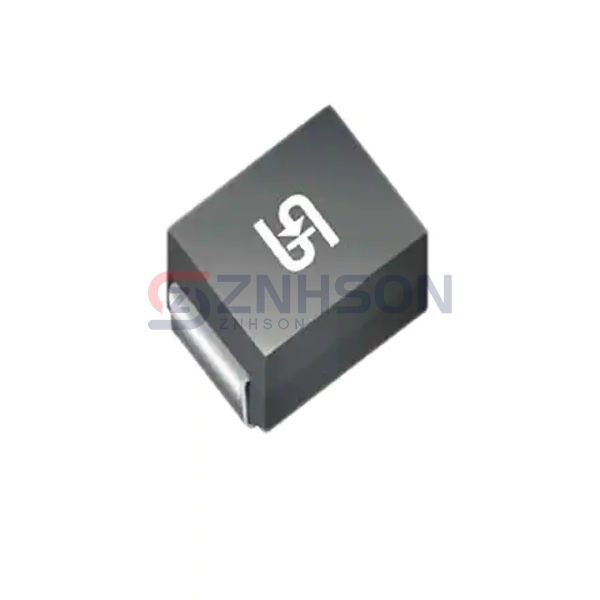

SMCJ90CAHR7G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 90VWM 146VC DO214AB
$0.00
Available to order
Reference Price (USD)
1,700+
$0.39488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMCJ90CAHR7G by Taiwan Semiconductor Corporation is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SMCJ90CAHR7G can secure CAN bus lines in vehicles against voltage spikes. Rely on Taiwan Semiconductor Corporation for cutting-edge TVS diode solutions.
Specifications
- Product Status: Discontinued at Digi-Key
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 90V
- Voltage - Breakdown (Min): 100V
- Voltage - Clamping (Max) @ Ipp: 146V
- Current - Peak Pulse (10/1000µs): 10.7A
- Power - Peak Pulse: 1500W (1.5kW)
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
