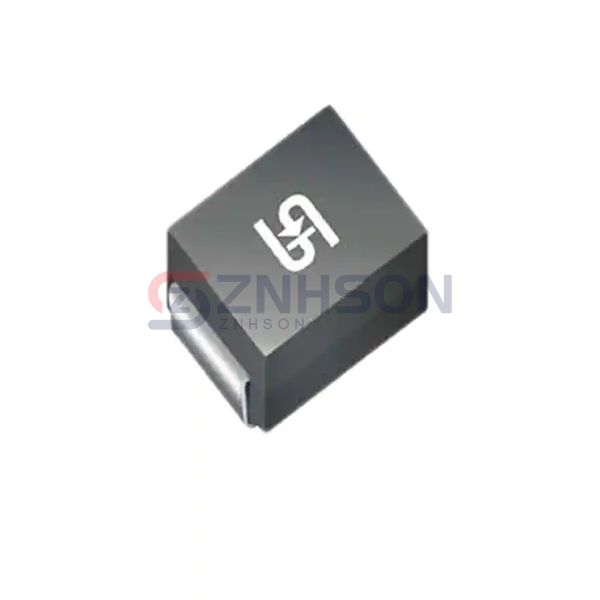

SMDJ22CAH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC DO214AB
$0.63
Available to order
Reference Price (USD)
1+
$0.62832
500+
$0.6220368
1000+
$0.6157536
1500+
$0.6094704
2000+
$0.6031872
2500+
$0.596904
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMDJ22CAH TVS diode by Taiwan Semiconductor Corporation delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the SMDJ22CAH can protect GPS modules in vehicles from ESD events. Taiwan Semiconductor Corporation provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 84.5A
- Power - Peak Pulse: 3000W (3kW)
- Power Line Protection: No
- Applications: Automotive, Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
