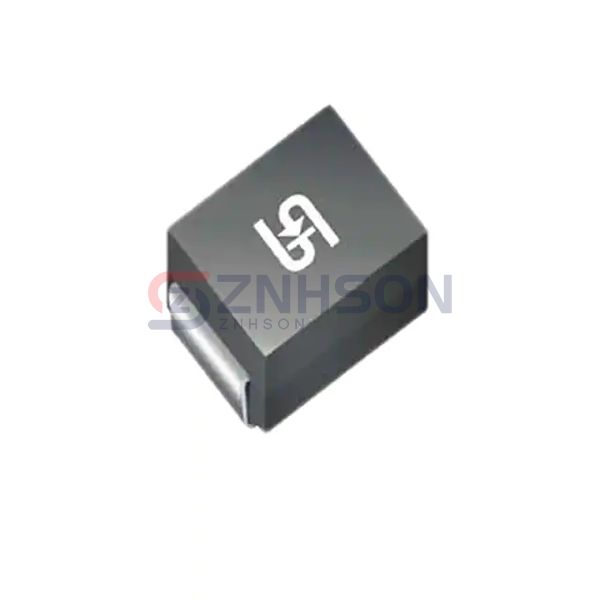

SMDJ90AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 90VWM 146VC DO214AB
$0.57
Available to order
Reference Price (USD)
1+
$0.57350
500+
$0.567765
1000+
$0.56203
1500+
$0.556295
2000+
$0.55056
2500+
$0.544825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SMDJ90AH TVS diode by Taiwan Semiconductor Corporation. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SMDJ90AH are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SMDJ90AH can shield HDMI ports in consumer electronics from voltage surges. Trust Taiwan Semiconductor Corporation's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 90V
- Voltage - Breakdown (Min): 100V
- Voltage - Clamping (Max) @ Ipp: 146V
- Current - Peak Pulse (10/1000µs): 20.5A
- Power - Peak Pulse: 3000W (3kW)
- Power Line Protection: No
- Applications: Automotive, Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
