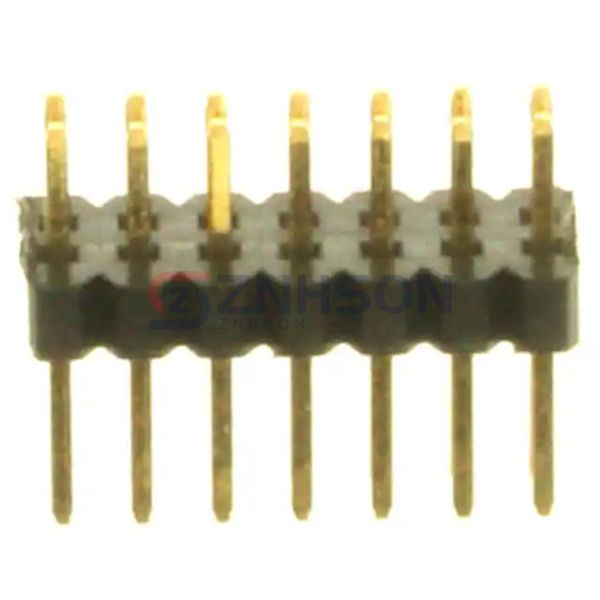

SMH100-LPSE-D07-ST-BK
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 14POS 1MM
$2.82
Available to order
Reference Price (USD)
1+
$2.82000
10+
$2.70400
100+
$2.25360
500+
$1.91556
1,000+
$1.63386
5,000+
$1.62760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMH100-LPSE-D07-ST-BK by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the SMH100-LPSE-D07-ST-BK supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.071" (1.80mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: 0.209" (5.30mm)
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
