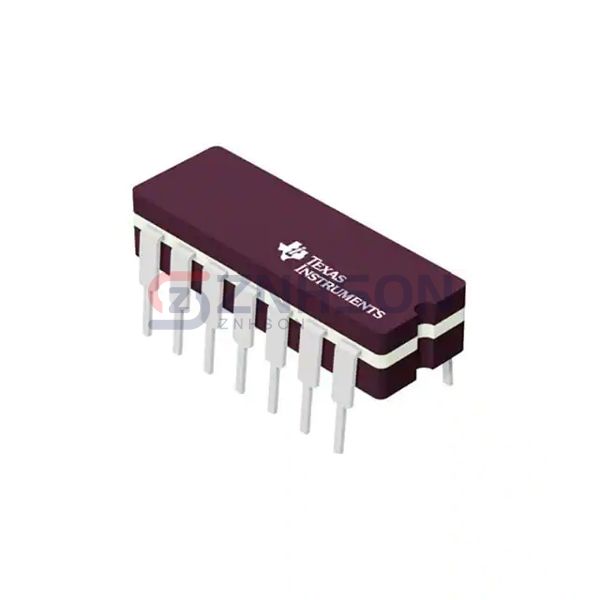

SN7438N
Texas Instruments
Texas Instruments
IC GATE NAND OPEN 4CH 2-IN 14DIP
$1.92
Available to order
Reference Price (USD)
1+
$1.65000
10+
$1.48100
25+
$1.39760
100+
$1.19070
500+
$0.97826
1,000+
$0.81055
2,500+
$0.75465
5,000+
$0.72670
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience reliable digital logic performance with Texas Instruments's SN7438N, a key component in our Logic - Gates and Inverters selection. This IC features buffered outputs for improved drive capability and reduced signal distortion. Technical highlights include 5ns maximum propagation delay and 24mA output drive at 5V. The SN7438N serves critical functions in computer architecture, including address decoding, bus interfacing, and memory control. Real-world applications encompass point-of-sale terminals, industrial HMI panels, and automotive dashboard electronics. With its moisture sensitivity level (MSL) rating of 1, this component is suitable for demanding production environments and extended storage periods.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Open Collector
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): -
- Current - Output High, Low: -, 48mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 22ns @ 5V, 45pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-PDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
