SN74AS805BDW
Texas Instruments
Texas Instruments

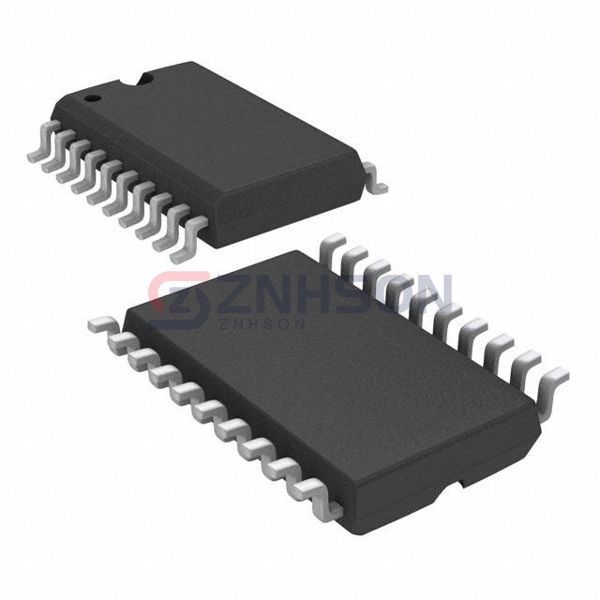

IC GATE NOR 6CH 2-INP 20SOIC
$3.38
Available to order
Reference Price (USD)
1+
$3.38000
500+
$3.3462
1000+
$3.3124
1500+
$3.2786
2000+
$3.2448
2500+
$3.211
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74AS805BDW from Texas Instruments delivers exceptional value in the Logic - Gates and Inverters market segment. This surface-mount IC combines multiple universal logic gates with optimized power-speed performance ratios. Key benefits include latch-up immunity exceeding 500mA and input leakage current below 1 A. Design engineers implement this component in power management systems, digital control circuits, and signal processing applications. Specific use cases include solar inverter controls, elevator logic boards, and industrial sensor networks. The SN74AS805BDW's compatibility with automated pick-and-place manufacturing processes makes it an economical choice for high-volume production runs across consumer and industrial sectors.
Specifications
- Product Status: Obsolete
- Logic Type: NOR Gate
- Number of Circuits: 6
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Max): -
- Current - Output High, Low: 48mA, 48mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 4.3ns @ 5V, 50pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 20-SOIC
- Package / Case: 20-SOIC (0.295", 7.50mm Width)
