SN74F38N
Texas Instruments
Texas Instruments

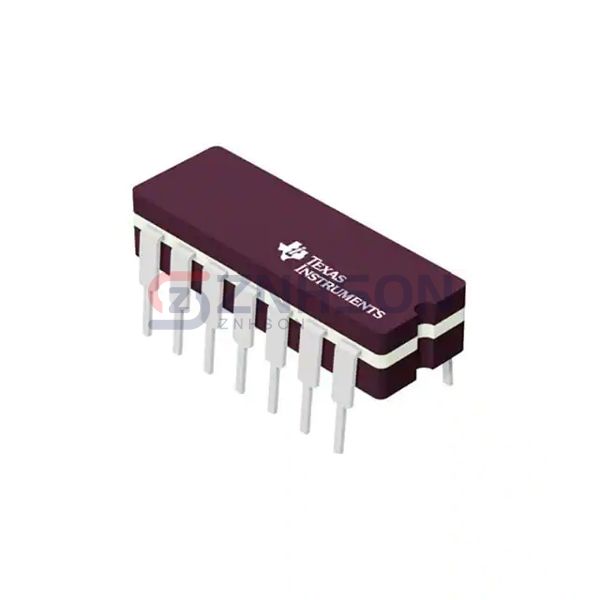

IC GATE NAND OPEN 4CH 2-IN 14DIP
$0.59
Available to order
Reference Price (USD)
1+
$0.51000
10+
$0.43500
25+
$0.40600
100+
$0.32480
500+
$0.25520
1,000+
$0.19720
2,500+
$0.17980
5,000+
$0.16820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the precision engineering of Texas Instruments's SN74F38N, a standout in our Logic - Gates and Inverters inventory. This integrated circuit offers multiple logic functions in a single package, reducing board space and simplifying circuit design. Key features include Schmitt-trigger inputs for improved signal integrity, balanced propagation delays, and compatibility with TTL logic levels. The SN74F38N finds applications in digital signal processing, computer peripherals, and communication systems. From industrial PLCs to consumer electronics like gaming consoles and smart TVs, this logic IC delivers consistent performance. Its RoHS compliance and lead-free construction meet global environmental standards.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Open Collector
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Max): 7 mA
- Current - Output High, Low: -, 64mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 12.5ns @ 5V, 50pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-PDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
