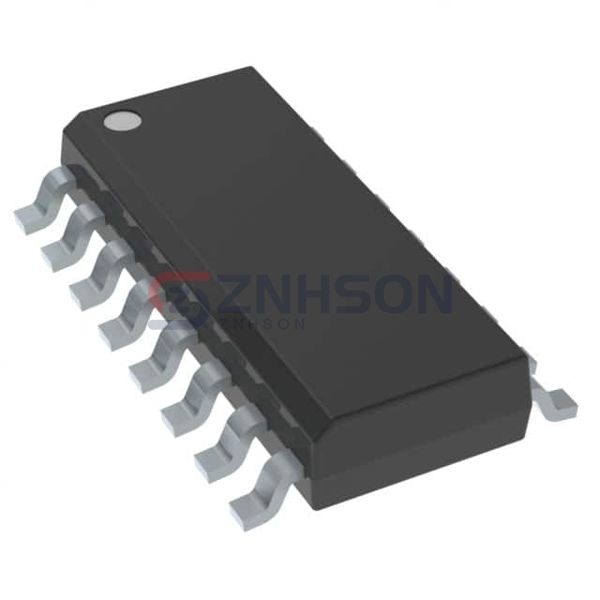

SN74HC175ANSR
Texas Instruments
Texas Instruments
IC FF D-TYPE SNGL 4BIT 16SO
$0.33
Available to order
Reference Price (USD)
2,000+
$0.19375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your digital designs with the SN74HC175ANSR Flip Flop from Texas Instruments, a top-tier choice in the Integrated Circuits (ICs) - Logic segment. This flip flop excels in applications demanding high-speed data processing and minimal latency. Featuring superior noise immunity and thermal stability, the SN74HC175ANSR is widely used in aerospace, medical devices, and consumer electronics. Trust Texas Instruments for innovative logic components that meet the highest industry standards. The SN74HC175ANSR is your go-to solution for reliable and efficient digital circuitry.
Specifications
- Product Status: Obsolete
- Function: Master Reset
- Type: D-Type
- Output Type: Complementary
- Number of Elements: 1
- Number of Bits per Element: 4
- Clock Frequency: 85 MHz
- Max Propagation Delay @ V, Max CL: 24ns @ 6V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 5.2mA, 5.2mA
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 3 pF
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 16-SO
- Package / Case: 16-SOIC (0.209", 5.30mm Width)
