SN74LS09D
Texas Instruments
Texas Instruments

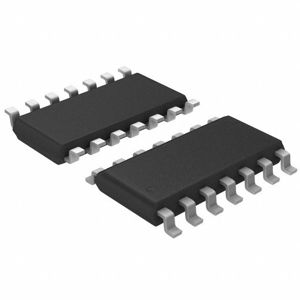

IC GATE AND OPEN 4CH 2-IN 14SOIC
$1.35
Available to order
Reference Price (USD)
1+
$1.08000
10+
$0.96200
50+
$0.91280
100+
$0.74980
500+
$0.61940
1,000+
$0.48900
2,500+
$0.45640
5,000+
$0.43358
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your digital systems with Texas Instruments's SN74LS09D, a sophisticated Logic - Gates and Inverters solution. This IC features proprietary noise reduction technology that maintains signal integrity in electrically noisy environments. The device's symmetrical output impedance minimizes transmission line reflections in high-speed applications. Typical implementations include interface logic for ADCs/DACs, clock distribution networks, and system control logic. The SN74LS09D is particularly effective in automotive CAN bus systems, industrial Ethernet switches, and aerospace avionics. With its extended product lifecycle guarantee, this component provides long-term supply security for critical applications.
Specifications
- Product Status: Active
- Logic Type: AND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Open Collector
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): -
- Current - Output High, Low: -, 8mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 35ns @ 5V, 15pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
