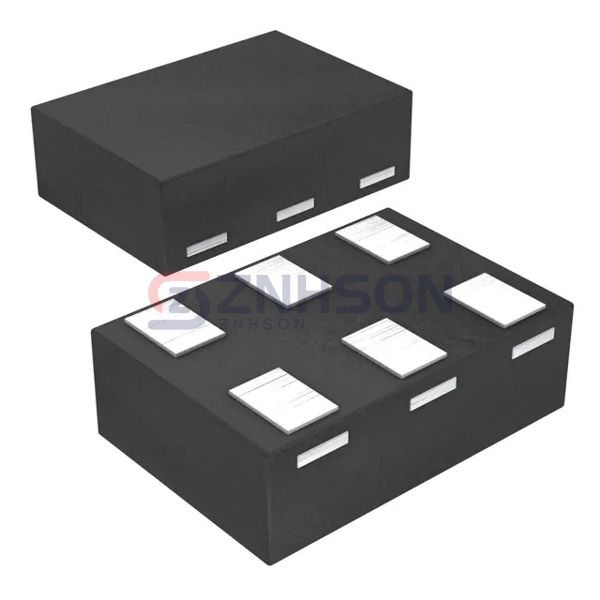

SN74LVC1G14QDRYRQ1
Texas Instruments
Texas Instruments
IC INVERT SCHMITT 1CH 1-IN 6USON
$0.48
Available to order
Reference Price (USD)
1+
$0.48000
500+
$0.4752
1000+
$0.4704
1500+
$0.4656
2000+
$0.4608
2500+
$0.456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your digital systems with Texas Instruments's SN74LVC1G14QDRYRQ1, a sophisticated Logic - Gates and Inverters solution. This IC features proprietary noise reduction technology that maintains signal integrity in electrically noisy environments. The device's symmetrical output impedance minimizes transmission line reflections in high-speed applications. Typical implementations include interface logic for ADCs/DACs, clock distribution networks, and system control logic. The SN74LVC1G14QDRYRQ1 is particularly effective in automotive CAN bus systems, industrial Ethernet switches, and aerospace avionics. With its extended product lifecycle guarantee, this component provides long-term supply security for critical applications.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 1
- Number of Inputs: 1
- Features: Schmitt Trigger
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.64V ~ 2.29V
- Logic Level - High: 1.16V ~ 3.33V
- Max Propagation Delay @ V, Max CL: 6ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 6-SON (1.45x1)
- Package / Case: 6-UFDFN
