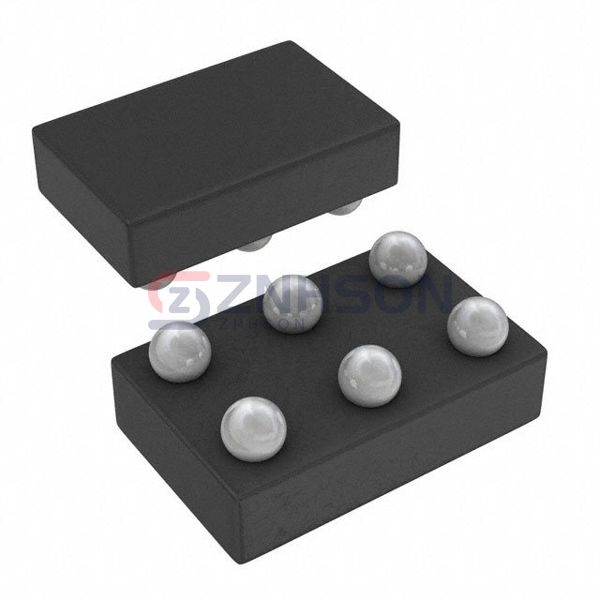

SN74LVC2G14YEPR
Texas Instruments
Texas Instruments
IC INVERT SCHMITT 2CH 2IN 6DSBGA
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LVC2G14YEPR from Texas Instruments delivers exceptional value in the Logic - Gates and Inverters market segment. This surface-mount IC combines multiple universal logic gates with optimized power-speed performance ratios. Key benefits include latch-up immunity exceeding 500mA and input leakage current below 1 A. Design engineers implement this component in power management systems, digital control circuits, and signal processing applications. Specific use cases include solar inverter controls, elevator logic boards, and industrial sensor networks. The SN74LVC2G14YEPR's compatibility with automated pick-and-place manufacturing processes makes it an economical choice for high-volume production runs across consumer and industrial sectors.
Specifications
- Product Status: Obsolete
- Logic Type: Inverter
- Number of Circuits: 2
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 10 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.3V ~ 1.4V
- Logic Level - High: 1.4V ~ 3.7V
- Max Propagation Delay @ V, Max CL: 4.3ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA
- Package / Case: 6-XFBGA, DSBGA
