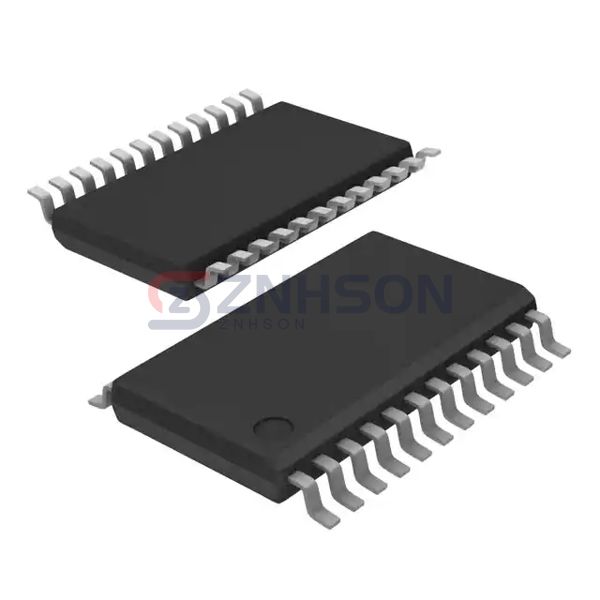

SN74LVCC3245APWTG4
Texas Instruments
Texas Instruments
IC TRNSLTR BIDIRECTIONAL 24TSSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LVCC3245APWTG4 from Texas Instruments redefines expectations for Logic Translator ICs in the Integrated Circuits category. With its innovative architecture, this level shifter handles asymmetric voltage translations (e.g., 1.8V to 5V) without additional components. The integrated slew rate control minimizes EMI, while the fail-safe I/O protection prevents damage from voltage spikes. Typical deployments include agricultural IoT (connecting 3V soil sensors to 5V LoRa transceivers), vending machines (interface between currency validators and main controllers), and building automation (bridging different voltage domain subsystems).
Specifications
- Product Status: Discontinued at Digi-Key
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 8
- Voltage - VCCA: 2.3 V ~ 3.6 V
- Voltage - VCCB: 3 V ~ 5.5 V
- Input Signal: -
- Output Signal: -
- Output Type: Tri-State, Non-Inverted
- Data Rate: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 24-TSSOP
Related Products
Nexperia USA Inc.
74AUP1T34GW125
Microchip Technology
SY10ELT22ZC
Texas Instruments
SN74GTLP817DWRG4
Texas Instruments
TXB0101DCKRG4
Microchip Technology
SY10ELT21LZI
Toshiba Semiconductor and Storage
TC7LX1104WBG(LC,AH
Texas Instruments
SN74LVC4245APWRG4
Analog Devices Inc.

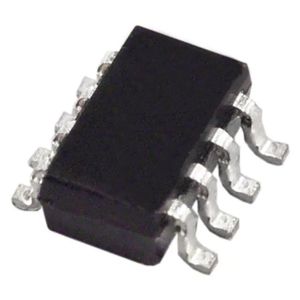

ADG3233BRJ-REEL
