SN74S132N
Texas Instruments
Texas Instruments

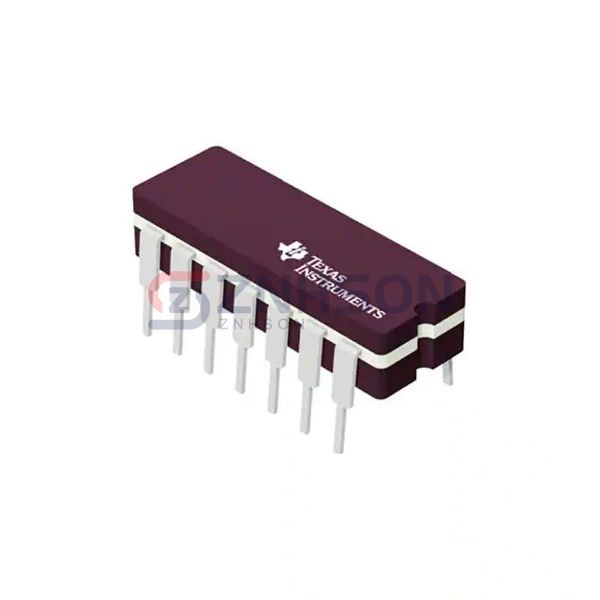

IC GATE NAND 4CH 2IN 14DIP
$4.26
Available to order
Reference Price (USD)
1+
$4.26000
500+
$4.2174
1000+
$4.1748
1500+
$4.1322
2000+
$4.0896
2500+
$4.047
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74S132N exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The SN74S132N is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Obsolete
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): -
- Current - Output High, Low: 1mA, 20mA
- Logic Level - Low: 1.1V
- Logic Level - High: 1.9V
- Max Propagation Delay @ V, Max CL: 13ns @ 5V, 15pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-PDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
