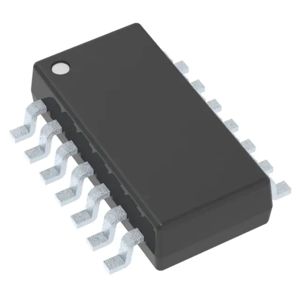

SN74S37DR
Texas Instruments
Texas Instruments
IC GATE NAND 4CH 2-INP 14SOIC
$1.34
Available to order
Reference Price (USD)
1+
$1.34000
500+
$1.3266
1000+
$1.3132
1500+
$1.2998
2000+
$1.2864
2500+
$1.273
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74S37DR represents the pinnacle of Logic - Gates and Inverters innovation. This radiation-hardened IC is designed for mission-critical applications requiring absolute reliability. Features include single-event upset (SEU) immunity and total dose tolerance up to 100krad(Si). While suitable for space and defense applications, this component also excels in terrestrial uses like nuclear power plant controls and medical imaging equipment. The SN74S37DR undergoes rigorous testing including burn-in and temperature cycling to ensure performance under extreme conditions. Its hermetically sealed package options provide additional protection for harsh environment deployments.
Specifications
- Product Status: Obsolete
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): -
- Current - Output High, Low: 3mA, 60mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 6ns @ 5V, 150pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
