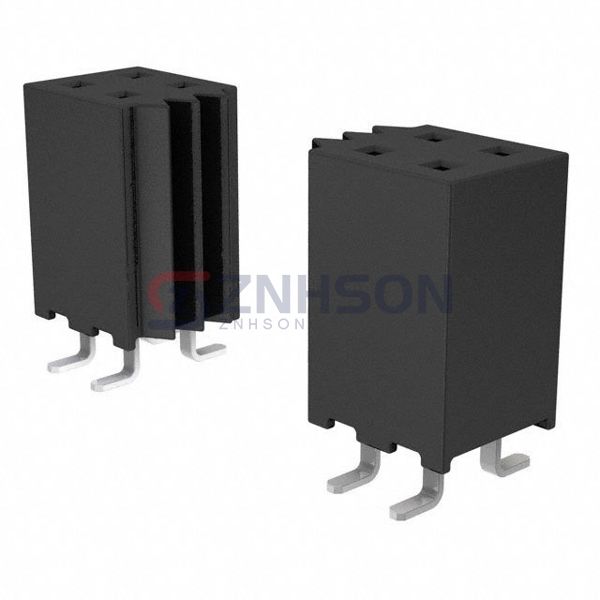

SQW-109-01-L-D-VS-P
Samtec Inc.
Samtec Inc.
CONN RCPT 18POS 0.079 GOLD SMD
$5.85
Available to order
Reference Price (USD)
1+
$3.64000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SQW-109-01-L-D-VS-P Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are engineered for high-performance applications requiring stable and durable connections. Featuring temperature-resistant materials and vibration-proof designs, these connectors are perfect for automotive electronics, power supplies, and HVAC systems. Their versatility extends to EV charging stations, uninterruptible power supplies, and building automation. Trust Samtec Inc. for connectors that combine innovation with reliability.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 18
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: Black
- Insulation Height: 0.300" (7.62mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Pick and Place
- Current Rating (Amps): 3.8A per Contact
- Voltage Rating: -
