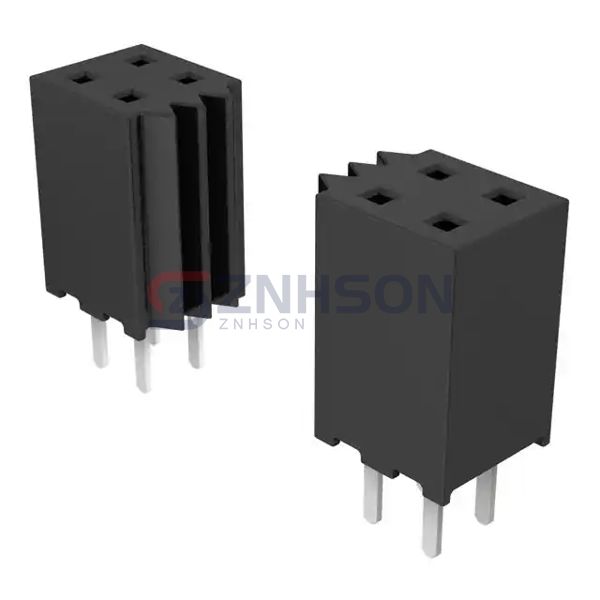

SQW-125-01-S-D-025
Samtec Inc.
Samtec Inc.
CONN RCPT 50POS 0.079 GOLD PCB
$15.15
Available to order
Reference Price (USD)
1+
$7.96000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with SQW-125-01-S-D-025 Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Samtec Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 50
- Number of Positions Loaded: 49
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3.8A per Contact
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
315-43-155-41-001000
Samtec Inc.
CLE-159-01-G-DV
Samtec Inc.
SSQ-109-03-T-D
Mill-Max Manufacturing Corp.
310-13-101-41-001000
TE Connectivity AMP Connectors
6-532956-2
Mill-Max Manufacturing Corp.
311-91-163-41-001000
Samtec Inc.
SFMC-105-01-F-D

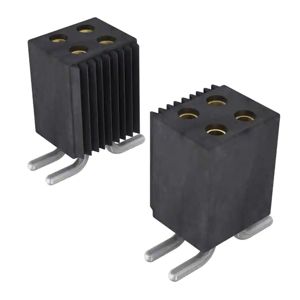

Mill-Max Manufacturing Corp.
853-93-024-30-001000

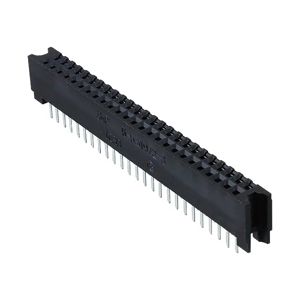

TE Connectivity AMP Connectors
