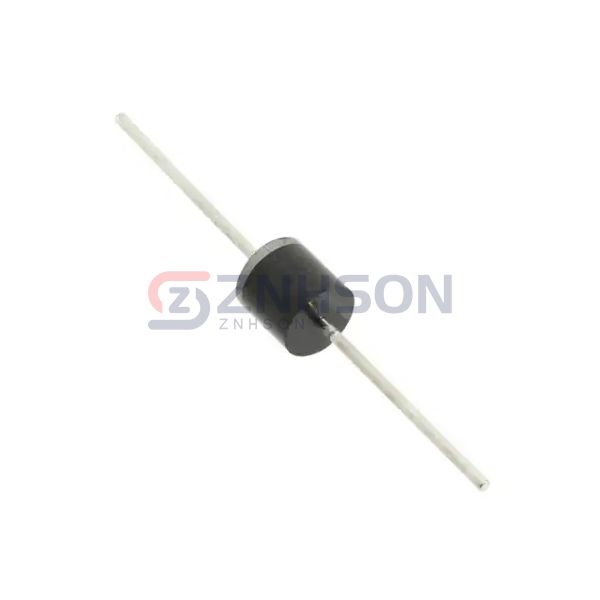

SR1503
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 15A 30V R-6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the SR1503 single rectifier diode from Taiwan Semiconductor Corporation. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The SR1503 is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Taiwan Semiconductor Corporation's commitment to innovation ensures that the SR1503 meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 15A (DC)
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 15 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 30 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: R-6, Axial
- Supplier Device Package: R-6
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Micro Commercial Co
HER104G-AP
Vishay General Semiconductor - Diodes Division
1N4934GPEHE3/54
Taiwan Semiconductor Corporation
HS5M R7G
Rohm Semiconductor

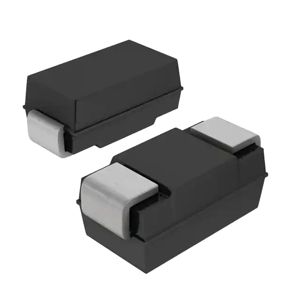

RB058L-60TE25
onsemi

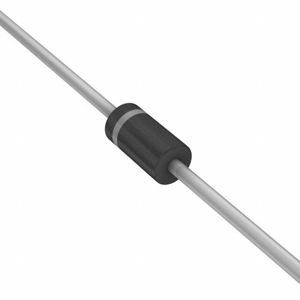

1N4006GP
Taiwan Semiconductor Corporation

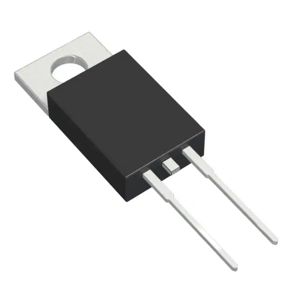

SRA1040 C0G
Taiwan Semiconductor Corporation
2A02G B0G
Taiwan Semiconductor Corporation
SR1203HR0G
Vishay General Semiconductor - Diodes Division

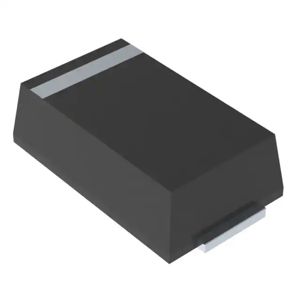

S1PKHE3/85A
