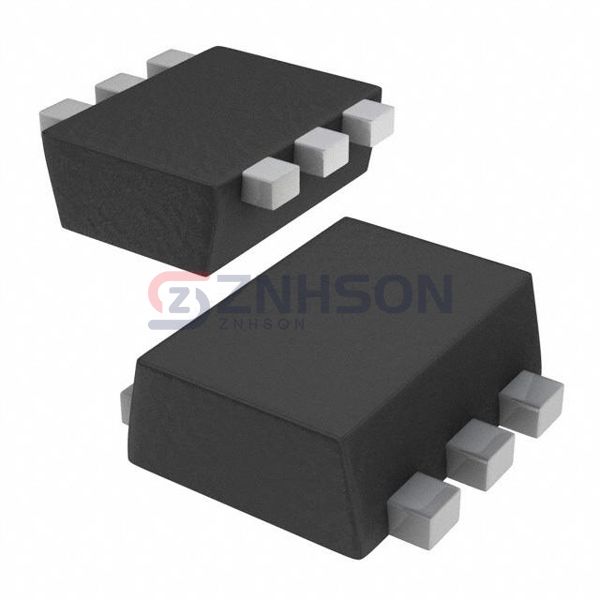

SS0503SH-TL-E
onsemi
onsemi
DIODE SCHOTTKY 30V 500MA 6SCH
$0.10
Available to order
Reference Price (USD)
1+
$0.10000
500+
$0.099
1000+
$0.098
1500+
$0.097
2000+
$0.096
2500+
$0.095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the SS0503SH-TL-E single rectifier diode from onsemi. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The SS0503SH-TL-E is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. onsemi's commitment to innovation ensures that the SS0503SH-TL-E meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 500mA
- Voltage - Forward (Vf) (Max) @ If: 470 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 10 ns
- Current - Reverse Leakage @ Vr: 120 µA @ 5 V
- Capacitance @ Vr, F: 13pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Flat Leads
- Supplier Device Package: 6-SCH
- Operating Temperature - Junction: -55°C ~ 125°C
