SSQ-112-03-G-S
Samtec Inc.
Samtec Inc.

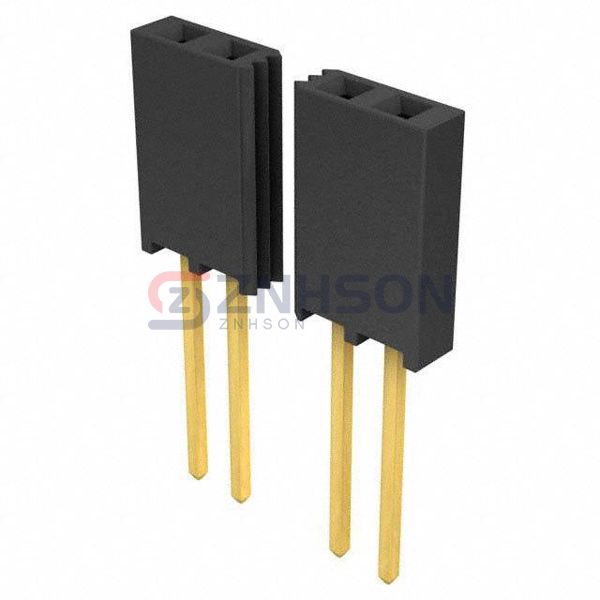

CONN RCPT 12POS 0.1 GOLD PCB
$2.56
Available to order
Reference Price (USD)
1+
$2.47000
10+
$2.24400
25+
$2.10640
50+
$2.01480
100+
$1.92330
250+
$1.74008
500+
$1.60272
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with SSQ-112-03-G-S Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Samtec Inc. connectors deliver the reliability and efficiency your projects demand.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 12
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.335" (8.51mm)
- Contact Length - Post: 0.394" (10.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: 465VAC, 655VDC
