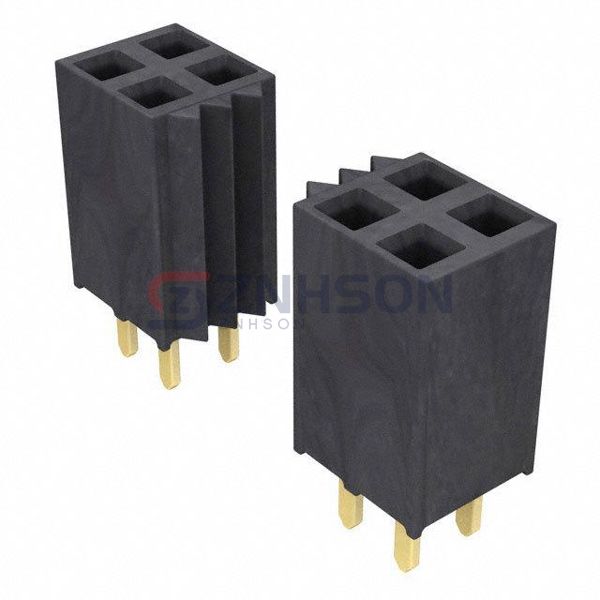

SSW-138-01-G-D
Samtec Inc.
Samtec Inc.
CONN RCPT 76POS 0.1 GOLD PCB
$10.24
Available to order
Reference Price (USD)
1+
$9.38000
10+
$8.96900
25+
$8.15320
50+
$7.74560
100+
$7.54180
250+
$6.72644
500+
$6.31880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with SSW-138-01-G-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Samtec Inc. connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board or Cable
- Number of Positions: 76
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.335" (8.51mm)
- Contact Length - Post: 0.104" (2.64mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 4.7A per Contact
- Voltage Rating: -
Related Products
Preci-Dip
317-87-126-41-026101
Preci-Dip
310-83-159-41-001101
Preci-Dip
801-87-032-10-173101
Preci-Dip
853-83-076-20-002101
Preci-Dip
801-83-011-66-001101
Preci-Dip
803-83-050-10-001101
Samtec Inc.
BCS-102-LM-D-PE

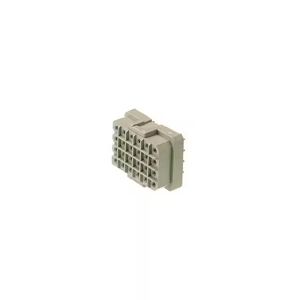

Weidmüller
1444200000

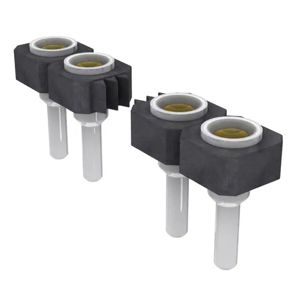

Samtec Inc.
