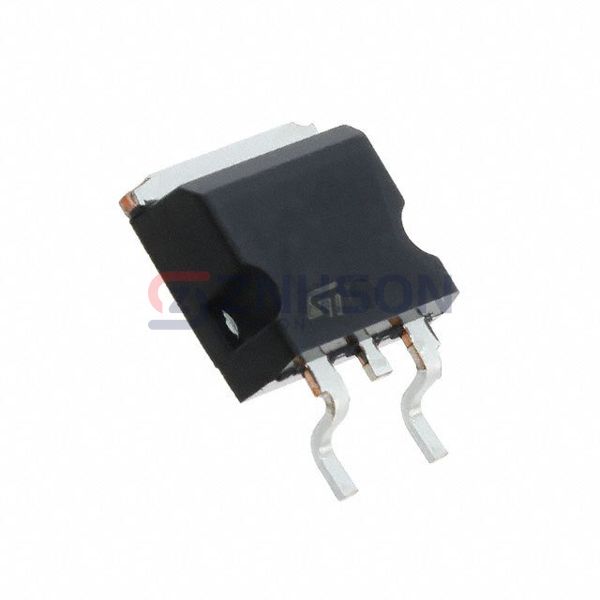

STB22N60DM6
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 15A D2PAK
$2.16
Available to order
Reference Price (USD)
1+
$2.16422
500+
$2.1425778
1000+
$2.1209356
1500+
$2.0992934
2000+
$2.0776512
2500+
$2.056009
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STB22N60DM6 single MOSFET from STMicroelectronics is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the STB22N60DM6 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 240mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id: 4.75V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 20.6 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 800 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 130W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D²PAK (TO-263)
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
