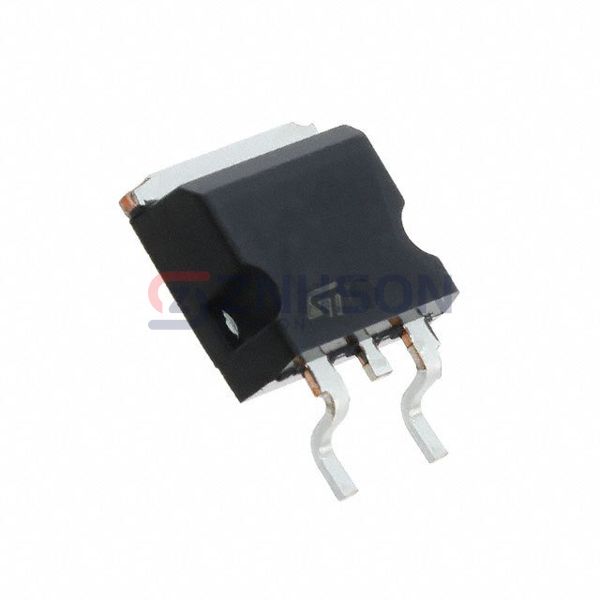

STB76NF75
STMicroelectronics
STMicroelectronics
MOSFET N-CH 75V 80A D2PAK
$0.00
Available to order
Reference Price (USD)
1,000+
$1.39084
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STB76NF75 by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STB76NF75 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 75 V
- Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 11mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 160 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3700 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D²PAK (TO-263)
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Microsemi Corporation
APT35SM70B
Infineon Technologies
IPP08CN10L G
Vishay Siliconix
VP1008B
Infineon Technologies
IRF6636TR1
Infineon Technologies
SPP21N10
Infineon Technologies
IPD50R1K4CEBTMA1
IXYS
IXTP24N15T
Infineon Technologies
IRF7702GTRPBF
onsemi

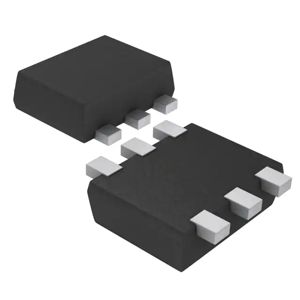

MCH6431-TL-W
