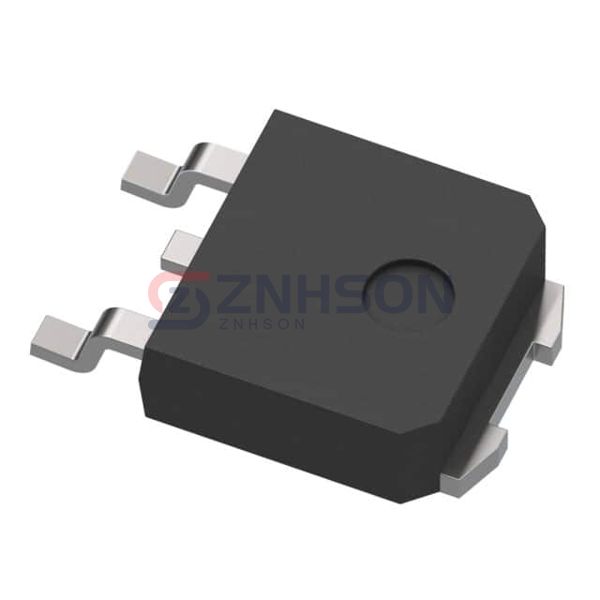

STD15N50M2AG
STMicroelectronics
STMicroelectronics
MOSFET N-CHANNEL 500V 10A DPAK
$2.00
Available to order
Reference Price (USD)
2,500+
$0.83750
5,000+
$0.81000
12,500+
$0.79500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STD15N50M2AG by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STD15N50M2AG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 500 V
- Current - Continuous Drain (Id) @ 25°C: 10A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 380mOhm @ 5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 530 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 85W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D-PAK (TO-252)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
