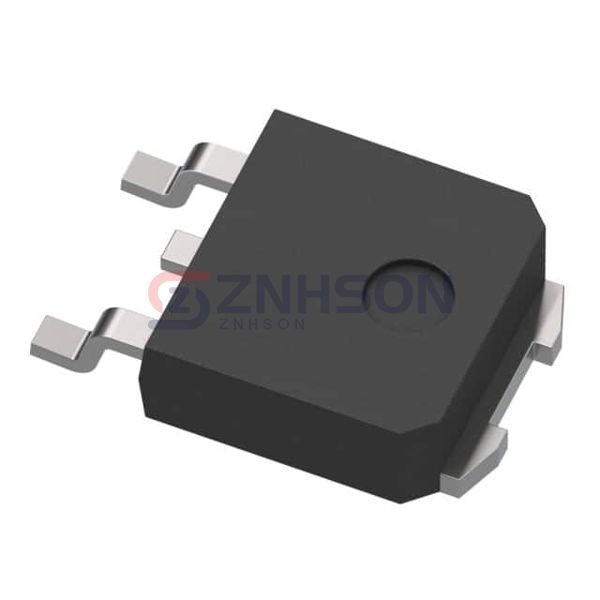

STD20NF06LAG
STMicroelectronics
STMicroelectronics
MOSFET N-CHANNEL 60V 24A DPAK
$1.62
Available to order
Reference Price (USD)
2,500+
$0.43250
5,000+
$0.41325
12,500+
$0.39950
25,000+
$0.39750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the STD20NF06LAG single MOSFET from STMicroelectronics. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the STD20NF06LAG combines cutting-edge technology with STMicroelectronics's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 24A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 40mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 13 nC @ 5 V
- Vgs (Max): ±18V
- Input Capacitance (Ciss) (Max) @ Vds: 660 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D-PAK (TO-252)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
