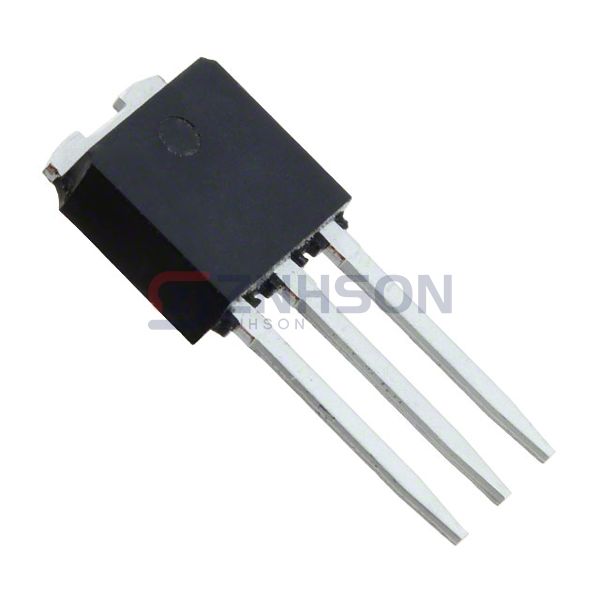

STD7NM80-1
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 6.5A IPAK
$0.00
Available to order
Reference Price (USD)
1+
$3.10000
75+
$2.53133
150+
$2.29460
525+
$1.82101
1,050+
$1.53689
2,550+
$1.44217
5,025+
$1.39482
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STD7NM80-1 single MOSFET from STMicroelectronics is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the STD7NM80-1 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 6.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.05Ohm @ 3.25A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 620 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 90W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
