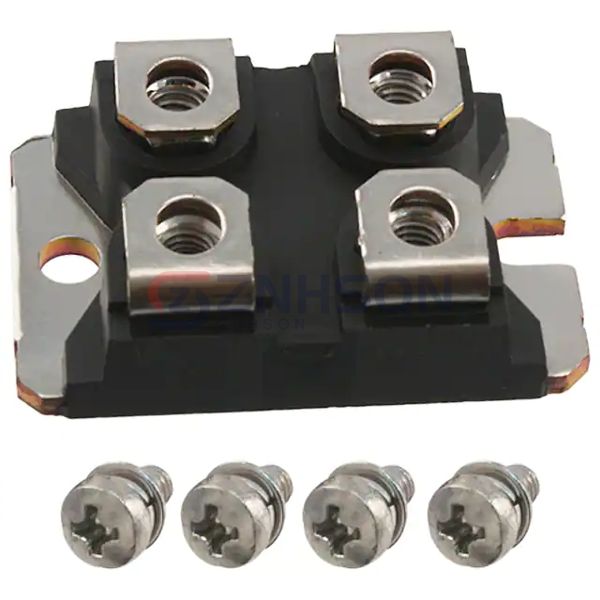

STE45NK80ZD
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 45A ISOTOP
$0.00
Available to order
Reference Price (USD)
100+
$41.70000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the STE45NK80ZD by STMicroelectronics, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the STE45NK80ZD is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 45A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 130mOhm @ 22.5A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 150µA
- Gate Charge (Qg) (Max) @ Vgs: 781 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 26000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 600W (Tc)
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: ISOTOP®
- Package / Case: ISOTOP
