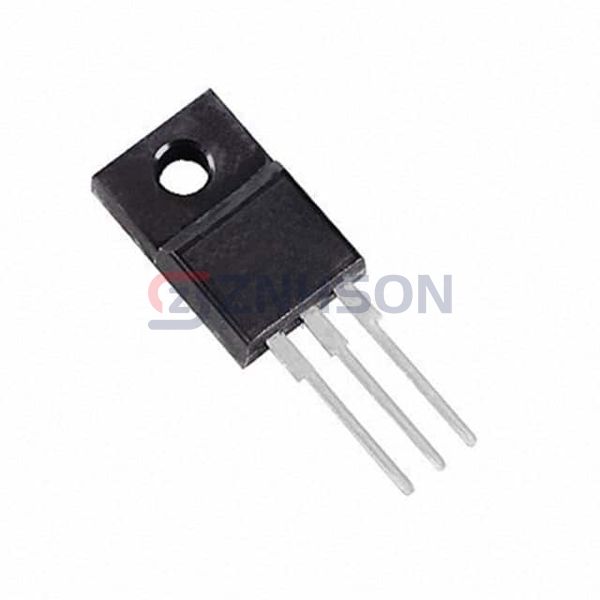

STF22N60M6
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 15A TO220FP
$1.71
Available to order
Reference Price (USD)
1+
$1.71098
500+
$1.6938702
1000+
$1.6767604
1500+
$1.6596506
2000+
$1.6425408
2500+
$1.625431
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STF22N60M6 from STMicroelectronics sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to STMicroelectronics's STF22N60M6 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 230mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id: 4.75V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 800 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 30W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220FP
- Package / Case: TO-220-3 Full Pack
