STG3682QTR
STMicroelectronics
STMicroelectronics

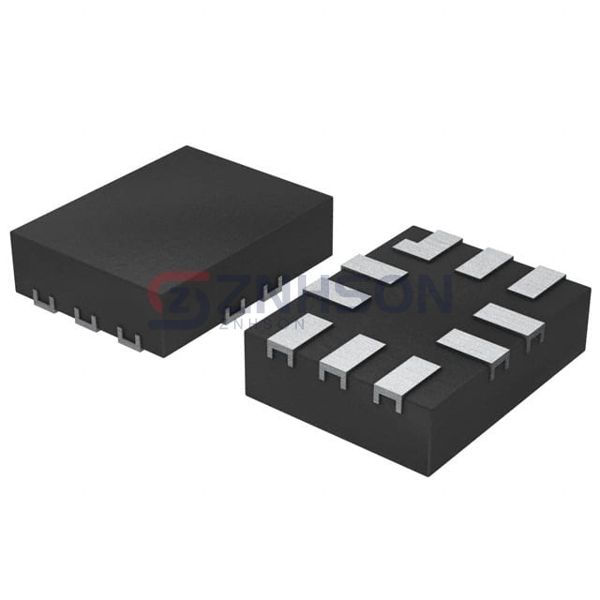

IC SWITCH DUAL SPDT 10QFN
$4.50
Available to order
Reference Price (USD)
3,000+
$1.67580
6,000+
$1.61280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STG3682QTR by STMicroelectronics represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The STG3682QTR is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 5.2Ohm
- Channel-to-Channel Matching (ΔRon): 300mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 15ns, 13ns
- -3db Bandwidth: 800MHz
- Charge Injection: 5pC
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -78dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-QFN (1.8x1.4)
