STG3699BVTR
STMicroelectronics
STMicroelectronics

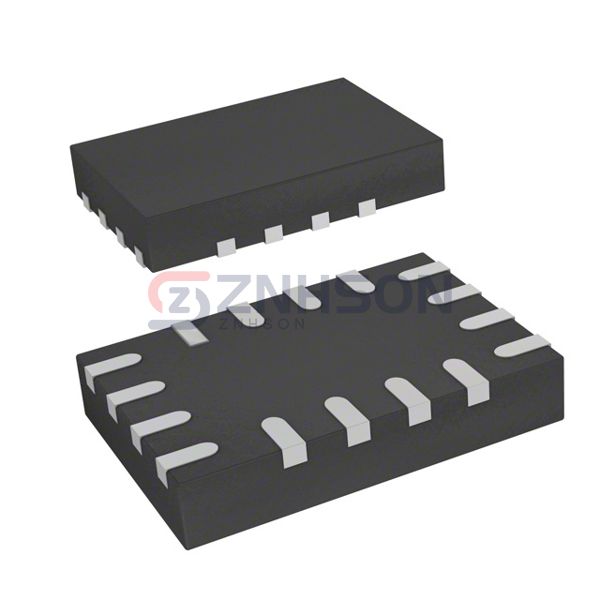

IC SWITCH QUAD SPDT 16QFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics's STG3699BVTR sets new benchmarks for analog switch ICs with its patented low-voltage operation down to 1.8V while handling analog signals up to 36V peak. This bidirectional multiplexer/demultiplexer from our premium Interface line offers break-before-make switching action with <20ns transition time. Medical ultrasound systems leverage its precision timing characteristics, while IoT edge devices benefit from its 0.1 A leakage current. The STG3699BVTR is the preferred choice for: laboratory automation equipment, phased-array radar systems, smart grid sensors, and high-speed data loggers. Its lead-free/GREEN compliance meets global environmental standards.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 500mOhm
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 55ns, 30ns
- -3db Bandwidth: 40MHz
- Charge Injection: 57pC
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -72dB @ 100kHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN
- Supplier Device Package: 16-QFN (2.6x1.8)
