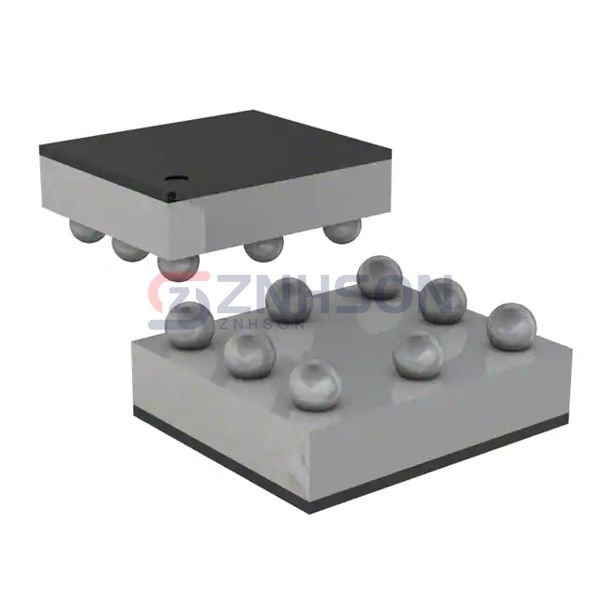

STG4160BJR
STMicroelectronics
STMicroelectronics
IC SWITCH SGL SPDT 2:1 8FLIPCHIP
$1.15
Available to order
Reference Price (USD)
5,000+
$0.19285
10,000+
$0.17955
25,000+
$0.17024
50,000+
$0.16625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with STMicroelectronics's STG4160BJR, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The STG4160BJR meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 500mOhm
- Channel-to-Channel Matching (ΔRon): 10mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.8V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 38ns, 38ns
- -3db Bandwidth: 50MHz
- Charge Injection: 162pC
- Channel Capacitance (CS(off), CD(off)): 30pF
- Current - Leakage (IS(off)) (Max): 30nA
- Crosstalk: -67dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-UFBGA, FCBGA
- Supplier Device Package: 8-FlipChip
