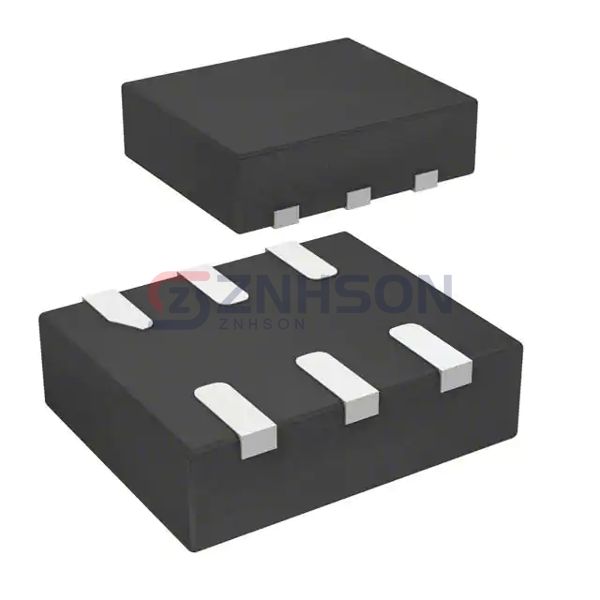

STG5123DTR
STMicroelectronics
STMicroelectronics
IC SWITCH SPDT 6DFN
$0.00
Available to order
Reference Price (USD)
5,000+
$0.13340
10,000+
$0.12420
25,000+
$0.11776
50,000+
$0.11500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STG5123DTR by STMicroelectronics represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The STG5123DTR is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 1.2Ohm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 28ns, 21ns
- -3db Bandwidth: 150MHz
- Charge Injection: 33pC
- Channel Capacitance (CS(off), CD(off)): 25pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -80dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-UFDFN
- Supplier Device Package: 6-DFN (1.2x1)
