STGP7H60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 14A 88W TO-220AB
$0.00
Available to order
Reference Price (USD)
1+
$1.66000
50+
$1.40440
100+
$1.19650
500+
$0.98306
1,000+
$0.81454
2,500+
$0.75836
5,000+
$0.74900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STGP7H60DF Single IGBT transistor from STMicroelectronics. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the STGP7H60DF ensures precision and reliability. STMicroelectronics's cutting-edge technology guarantees a component that meets the highest industry standards. Choose STGP7H60DF for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 14 A
- Current - Collector Pulsed (Icm): 28 A
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 7A
- Power - Max: 88 W
- Switching Energy: 99µJ (on), 100µJ (off)
- Input Type: Standard
- Gate Charge: 46 nC
- Td (on/off) @ 25°C: 30ns/160ns
- Test Condition: 400V, 7A, 47Ohm, 15V
- Reverse Recovery Time (trr): 136 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220
Related Products
IXYS
IXGR40N60C
Infineon Technologies
SKB15N60 E8151
IXYS
IXGT28N120B
Infineon Technologies
IRG4BC40W-LPBF
IXYS
IXGQ90N33TCD1
Renesas Electronics America Inc
RJH1CF4RDPQ-80#T2
Infineon Technologies

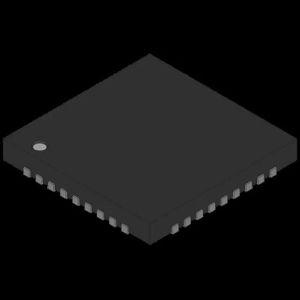

IRG4IBC30UDPBF-INF
STMicroelectronics

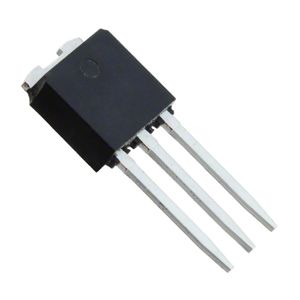

STGD5NB120SZ-1
