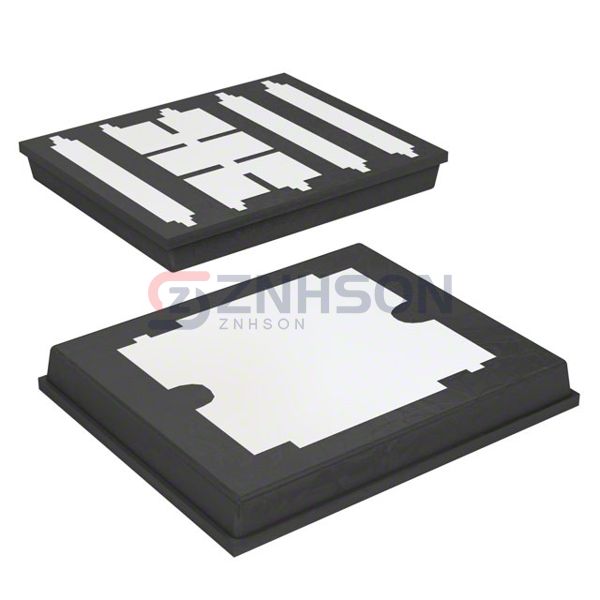

STK20N75F3
STMicroelectronics
STMicroelectronics
MOSFET N-CH 75V 20A POLARPAK
$0.00
Available to order
Reference Price (USD)
3,000+
$2.04820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STK20N75F3 by STMicroelectronics is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the STK20N75F3 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 75 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 53 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3150 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 5.2W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PolarPak®
- Package / Case: PolarPak®
