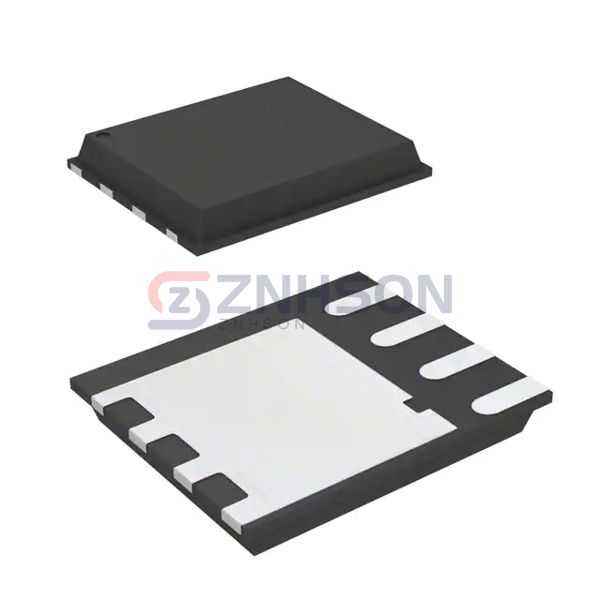

STL100N1VH5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 12V 100A POWERFLAT
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the STL100N1VH5 single MOSFET from STMicroelectronics. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the STL100N1VH5 combines cutting-edge technology with STMicroelectronics's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 3mOhm @ 12.5A, 4.5V
- Vgs(th) (Max) @ Id: 500mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 26.5 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 2085 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Infineon Technologies
IRLMS2002TR
Infineon Technologies
IPP70N04S3-07
Renesas Electronics America Inc
2SK1518-E
NXP USA Inc.
BSS84AK-B215
Vishay Siliconix
SUD40N02-08-E3
onsemi
STD110N02RT4G-VF01
Alpha & Omega Semiconductor Inc.

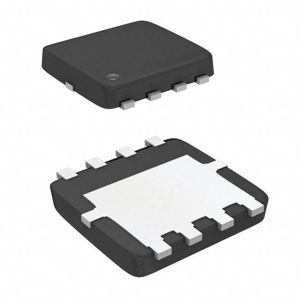

AON7416_101
Alpha & Omega Semiconductor Inc.
AO4435L_103
STMicroelectronics

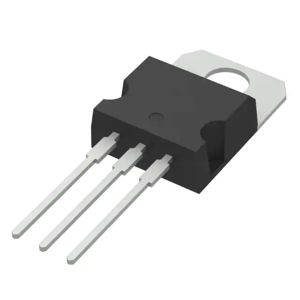

STP21NM60N
