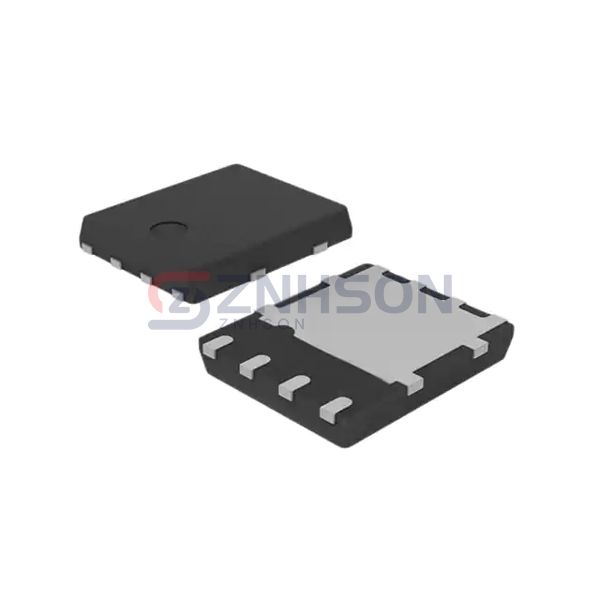

STL10N3LLH5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 9A POWERFLAT
$1.14
Available to order
Reference Price (USD)
3,000+
$0.56210
6,000+
$0.53400
15,000+
$0.51392
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STL10N3LLH5 from STMicroelectronics sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to STMicroelectronics's STL10N3LLH5 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 19mOhm @ 4.5A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6 nC @ 4.5 V
- Vgs (Max): ±22V
- Input Capacitance (Ciss) (Max) @ Vds: 900 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 50W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (3.3x3.3)
- Package / Case: 8-PowerVDFN
