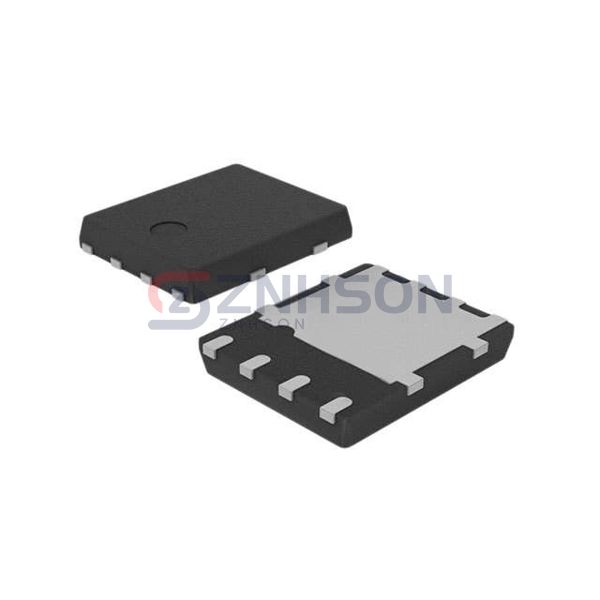

STL120N4LF6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 120A POWERFLAT
$0.00
Available to order
Reference Price (USD)
3,000+
$1.34000
6,000+
$1.29600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STL120N4LF6AG from STMicroelectronics redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the STL120N4LF6AG offers the precision and reliability you need. Trust STMicroelectronics to power your next breakthrough innovation.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 3.6mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4260 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 96W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
