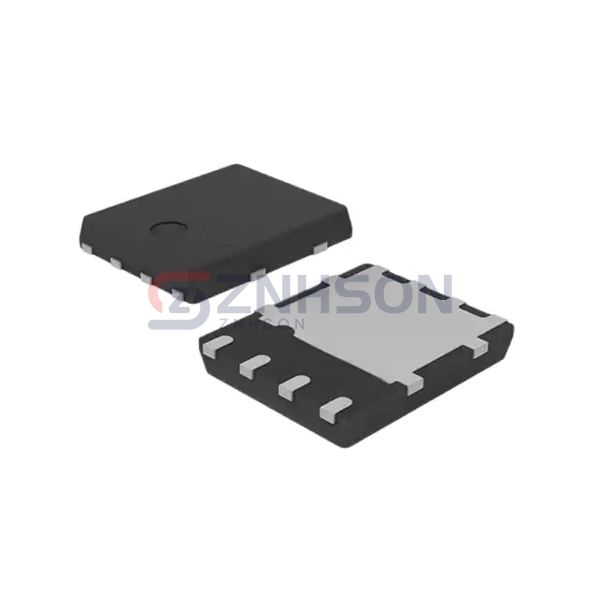

STL15N3LLH5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 15A POWERFLAT
$0.00
Available to order
Reference Price (USD)
3,000+
$0.79448
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the STL15N3LLH5 by STMicroelectronics, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the STL15N3LLH5 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.4mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 4.5 V
- Vgs (Max): ±22V
- Input Capacitance (Ciss) (Max) @ Vds: 1500 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 50W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (3.3x3.3)
- Package / Case: 8-PowerVDFN
Related Products
NXP USA Inc.
PMN27UP,115-NXP
Fairchild Semiconductor
HUF75321D3
Alpha & Omega Semiconductor Inc.
AON6200L
Vishay Siliconix
SI6466ADQ-T1-E3
Infineon Technologies
IPP47N10SL26AKSA1
onsemi
SFT1452-TL-W
Infineon Technologies
IPI11N03LA
Alpha & Omega Semiconductor Inc.

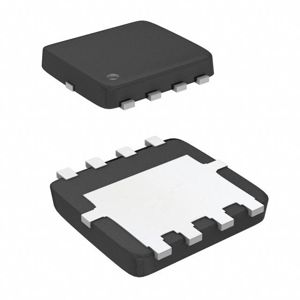

AON7754
