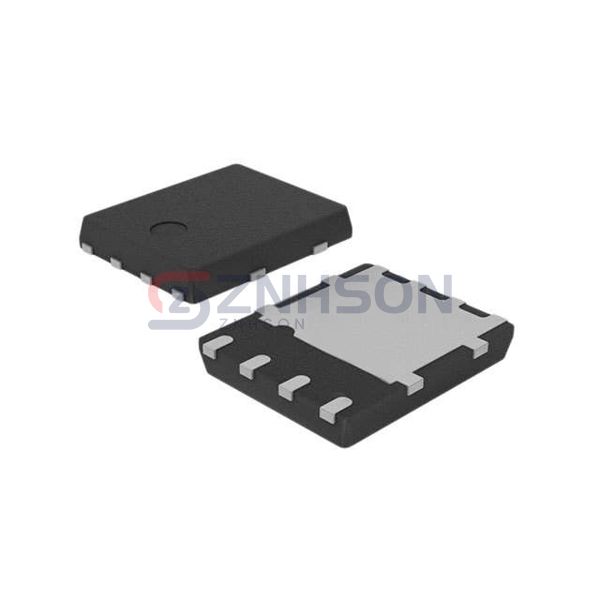

STL160N3LLH6
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 160A POWERFLAT
$0.00
Available to order
Reference Price (USD)
3,000+
$1.81412
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STL160N3LLH6 by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STL160N3LLH6 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 160A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.3mOhm @ 17.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 61.5 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6375 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Infineon Technologies
SPP15P10PHXKSA1
onsemi
NTMFS4122NT3G
onsemi

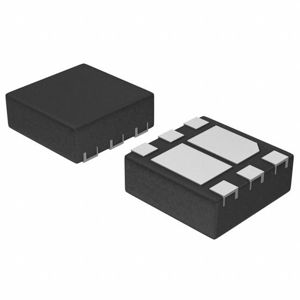

NTLJF3118NTBG
onsemi
FQD6N50CTM
IXYS

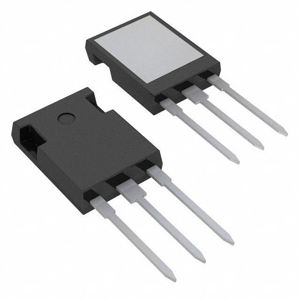

IXFR9N80Q
