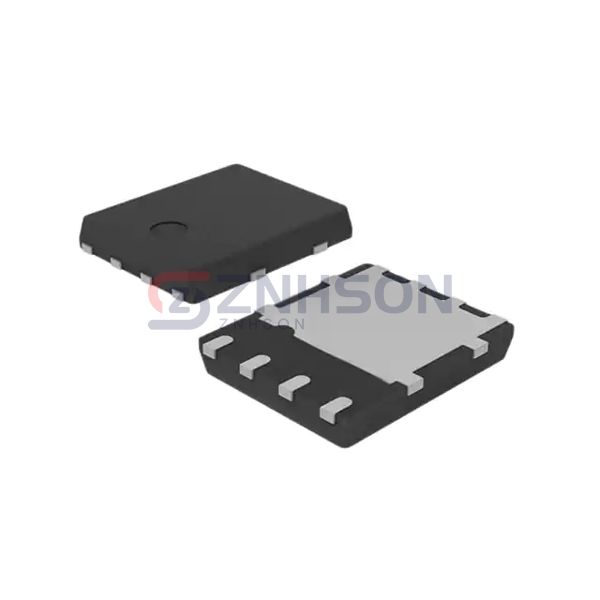

STL160NS3LLH7
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 160A POWERFLAT
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STL160NS3LLH7 by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STL160NS3LLH7 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 160A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.1mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3245 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 84W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
Vishay Siliconix
SI7860DP-T1-E3
onsemi
NTD4969NT4G
Infineon Technologies
SPB80N06S2L-07
onsemi
NTB45N06LG
Infineon Technologies
BSC0908NSATMA1
onsemi
FDWS5360L-F085
Diodes Incorporated
ZVP1320ASTOA
Infineon Technologies

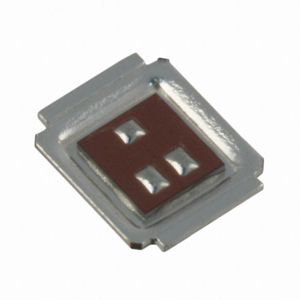

IRF6722STR1PBF
