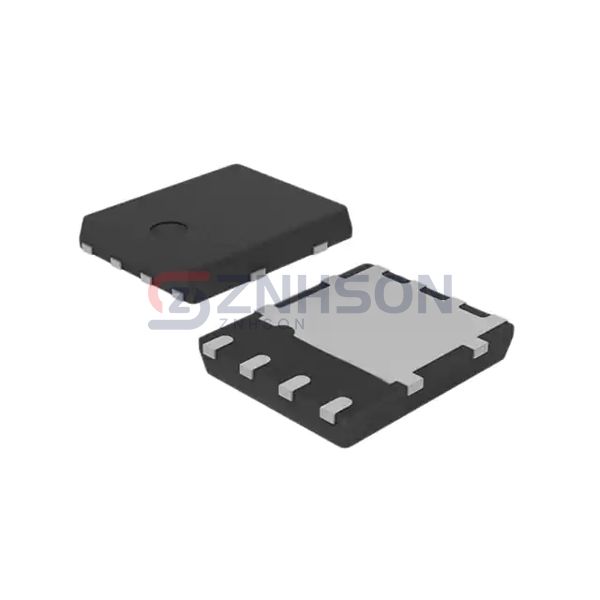

STL23NS3LLH7
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 92A POWERFLAT
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the STL23NS3LLH7 by STMicroelectronics, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the STL23NS3LLH7 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 92A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.7mOhm @ 11.5A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 13.7 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2100 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.9W (Ta), 50W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (3.3x3.3)
- Package / Case: 8-PowerVDFN
