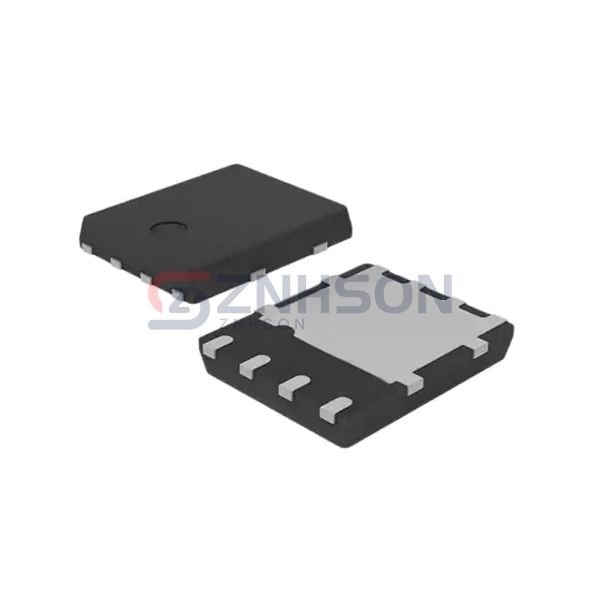

STL285N4F7AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 120A POWERFLAT
$1.90
Available to order
Reference Price (USD)
3,000+
$1.64485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STL285N4F7AG single MOSFET from STMicroelectronics. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust STMicroelectronics's STL285N4F7AG for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.1mOhm @ 24A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 67 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5600 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 188W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
Related Products
IXYS
IXFR44N50Q3
onsemi
NTMFS4744NT1G
Infineon Technologies
IPP50R199CPXKSA1
Rohm Semiconductor
R6012JNJGTL
Vishay Siliconix
SIHP12N60E-E3
Wolfspeed, Inc.
C2M0045170P
Infineon Technologies
IRFS38N20DTRLP
onsemi
NTR4170NT1G

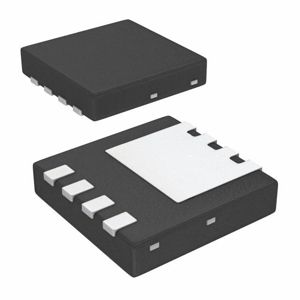

onsemi
