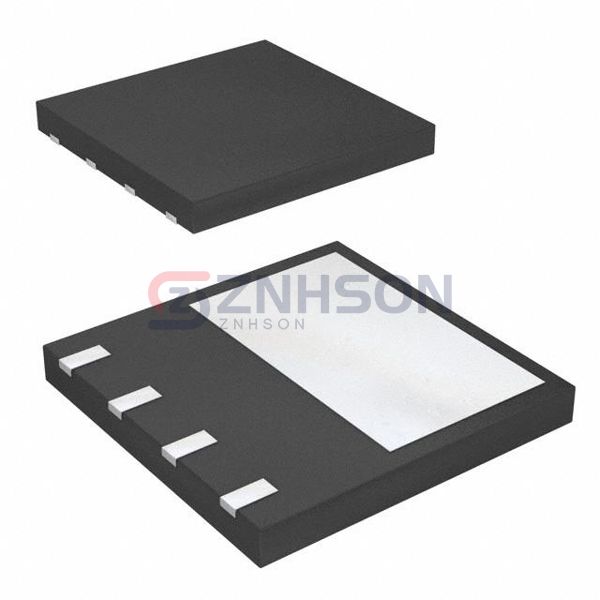

STL36N60M6
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 25A PWRFLAT HV
$6.98
Available to order
Reference Price (USD)
1+
$6.98000
500+
$6.9102
1000+
$6.8404
1500+
$6.7706
2000+
$6.7008
2500+
$6.631
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STL36N60M6 by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STL36N60M6 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 25A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 110mOhm @ 12.5A, 10V
- Vgs(th) (Max) @ Id: 4.75V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 44.3 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 1960 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 160W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (8x8) HV
- Package / Case: 8-PowerVDFN
