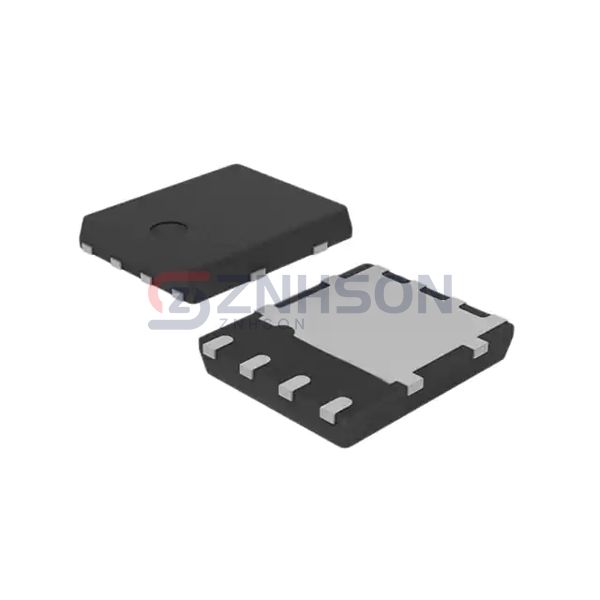

STL60N3LLH5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 60A POWERFLAT
$0.00
Available to order
Reference Price (USD)
3,000+
$0.54322
6,000+
$0.51904
15,000+
$0.50177
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STL60N3LLH5 from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STL60N3LLH5 ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 7.1mOhm @ 8.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8 nC @ 4.5 V
- Vgs (Max): ±22V
- Input Capacitance (Ciss) (Max) @ Vds: 1290 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
