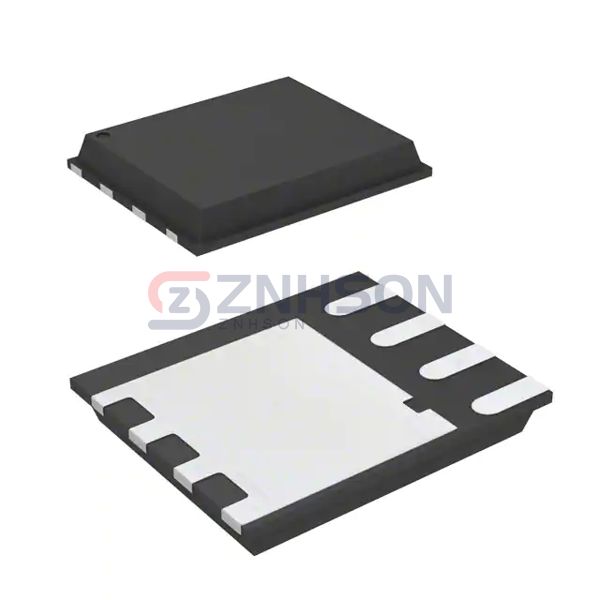

STL75N3LLZH5
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 75A POWERFLAT
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STL75N3LLZH5 from STMicroelectronics sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to STMicroelectronics's STL75N3LLZH5 for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.1mOhm @ 9.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.8 nC @ 4.5 V
- Vgs (Max): ±18V
- Input Capacitance (Ciss) (Max) @ Vds: 1510 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
