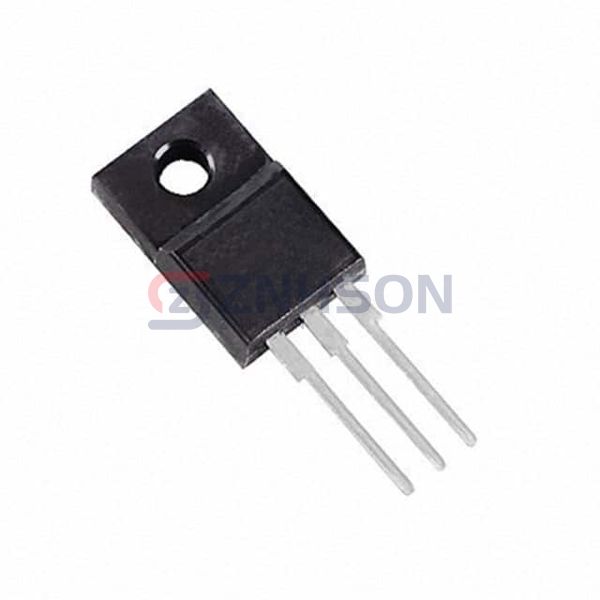

STP7NK80ZFP
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 5.2A TO220FP
$3.02
Available to order
Reference Price (USD)
1+
$3.08000
50+
$2.51600
100+
$2.28070
500+
$1.81002
1,000+
$1.52760
2,500+
$1.43347
5,000+
$1.38640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STP7NK80ZFP by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STP7NK80ZFP stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 5.2A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.8Ohm @ 2.6A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 56 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1138 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 30W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220FP
- Package / Case: TO-220-3 Full Pack
